Solis 40.0kW Dual MPPT 3-Phase Grid Tied Solar Kit

Description

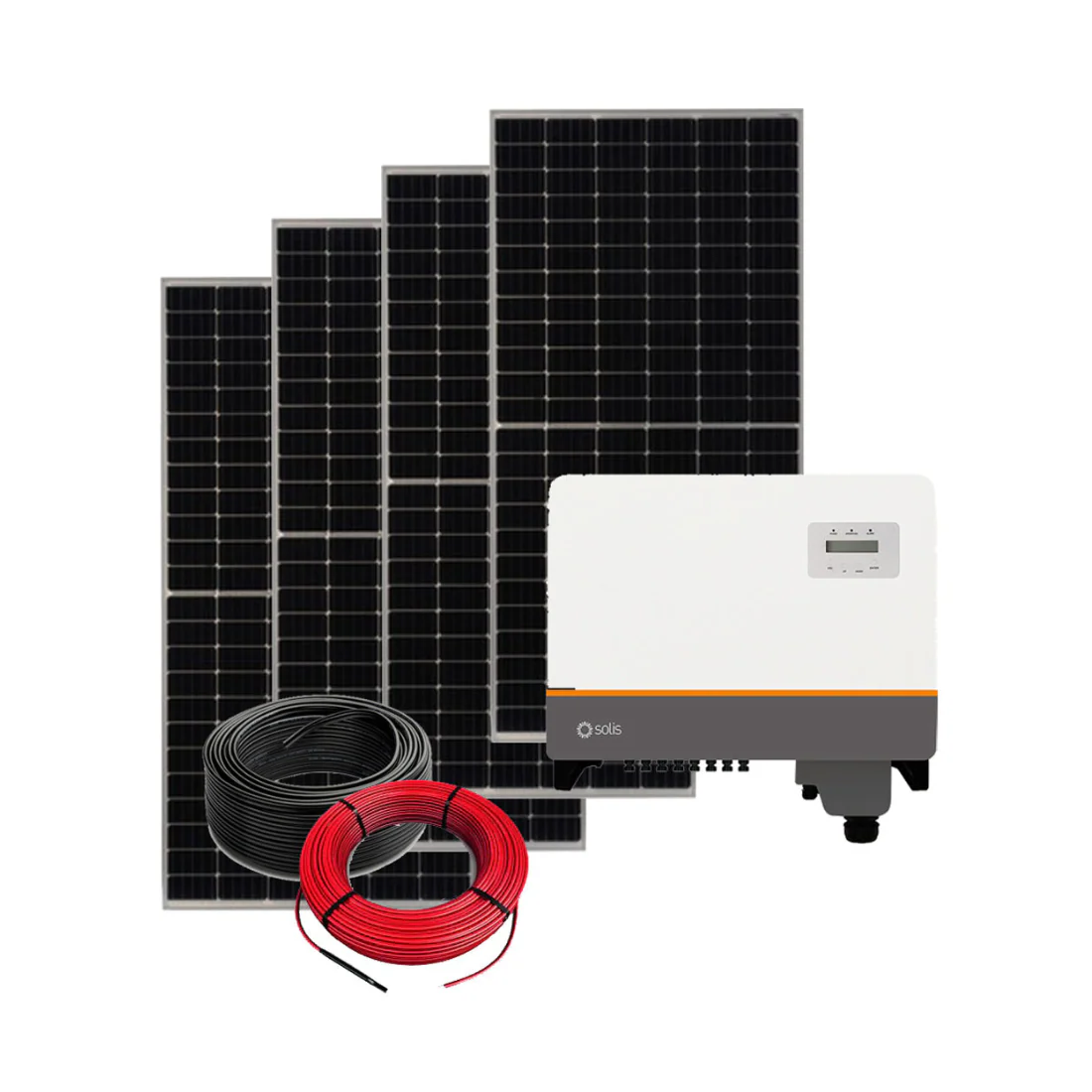

Solis 40.0kW Grid-tie Kit contains the following components

• 76 x JA Solar 545W Mono Percium Half-cell Solar Panel.
• 1 x Solis S5 40.0kW Quad MPPT 3-Phase Grid Tie Inverter.
• 1 x K&N Three Phase AC Switch Disconnector 80A.
• 9 x MC4 Pre terminated cable 2m (Pack of 2).
• 3 x Multi Contact Cable Coupler Pack – MC4.
• 20m x Sustainable 6mm² Black Panelflex.
• 20m x Sustainable 6mm² Red Panelflex.
• 100m x Sustainable 6mm² Black Double Insulated Halogen Free Solar Cable.
• 1 x PV on Roof and Hazard Labels Pack.
• 1 x Optional Roof Mounting System.

Specifications

• Cell: Mono.
• Weight: 28.6kg±3%.
• Dimensions: 2279×1134×35mm.
• Cable Cross Section Size: 4mm.
• No. of Cells: 144 (6×24).
• Junction Box: IP67, 3 diodes.
• Connector: QC4.10 connectors.
• Rated Maximum Power (Pmax) [W]: 545.
• Open Circuit Voltage (Voc) [V]: 49.75.
• Maximum Power Voltage (Vmp) [V]: 41.80.
• Short Circuit Current (Isc) [A]: 13.93.
• Maximum Power Current (Imp) [A]: 13.04.
• Module Efficiency [%]: 21.1.
• Power Tolerance: -0~+5W.
• STC: Irradiance 1000W/m2, cell temperature 25°C, AM 1.5G.

Inverter – Solis 40kW 5G 3 Phase Quad MPPT – DC

• Phases: 3
• No. of MPPT: 4
• Rated AC Power: 44,000 W
• Max DC Current: 128.00 A
• Max DC Voltage: 1100 V
• PP Voltage: Min200 V, Max1100 V.

Electrical – Solis 40kW 5G 3 Phase Quad MPPT – DC

• Quantity: 1
• Distance to Array: 20 m
• Cable Area: 6 mm2
• Voltage Drop: 1.33 %

PV Performance Estimation A. Installation Data – New MCS Calculation

• Installed capacity of PV system – kWP (stc): 41.040 kWp.
• Orientation of the PV system – degrees from South: 0°.
• Inclination of system – degrees from horizontal: 35°.

B. Calculation

• kWh/kWp (KK) from table1: 1,667 kWh/kWp.
• Shade factor (SF): 1.00.
• Estimated annual output (kWpxKKxSF): 72,031 kWh.
