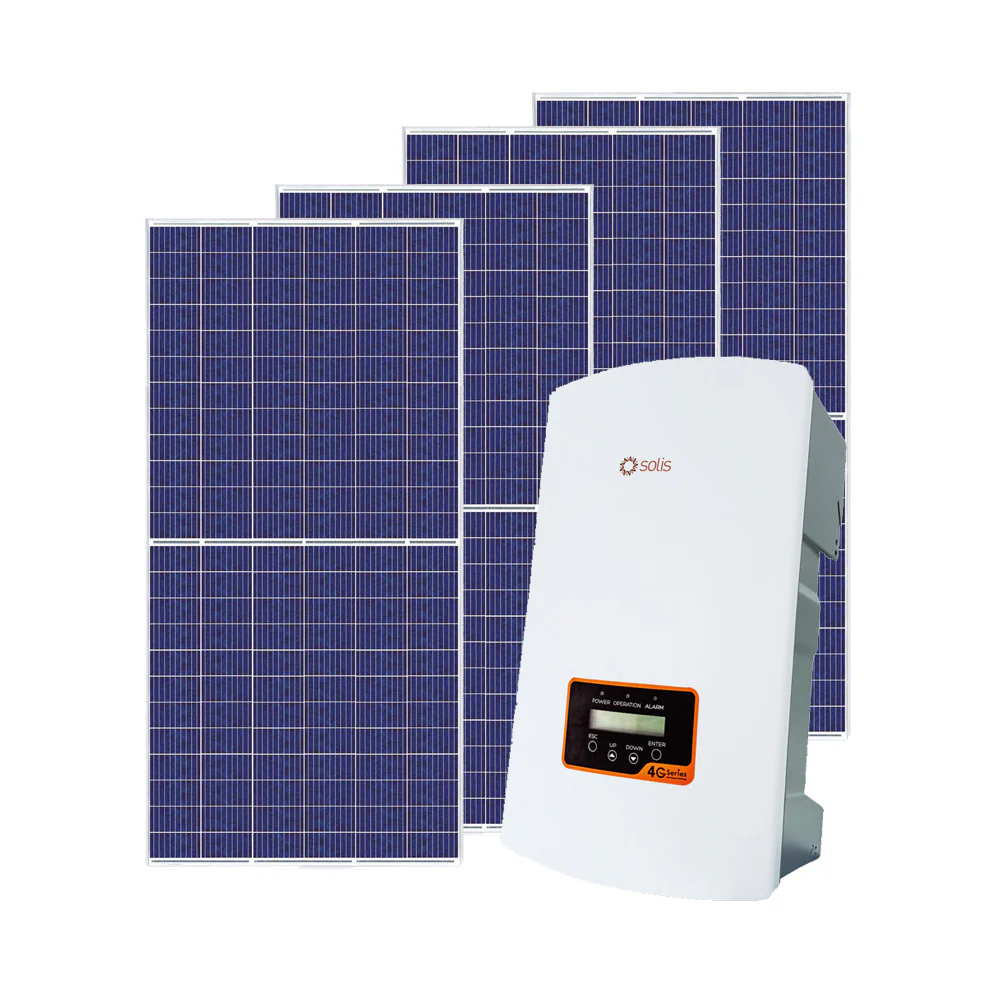

Solis 15.0kW Dual MPPT 3-Phase Grid Tied Solar Kit

Description

Solis 15.0kW Grid-tie Kit contains the following components

• 42 x Canadian Solar HiKu 375W Super High Power Mono PERC Solar Panel.
• 1 x Solis 4G 15.0kW Dual MPPT 3-Phase Grid Tie Inverter.
• 1 x K&N 63A Three Phase AC Switch Disconnector.
• 3 x K&N 25A/450V – 11A/920V Single String DC Switch Disconnector
• 1 x 1000V SolarEdge Protection Box Type 2 For SE 4-17K Inverter.
• 11 x MC4 Pre terminated cable 2m (Pack of 2).
• 2 x Multi Contact Cable Coupler Pack – MC4.
• 20m x Sustainable 6mm² Black Panelflex.
• 20m x Sustainable 6mm² Red Panelflex.
• 20m x Sustainable 6mm² Black Double Insulated Halogen Free Solar Cable.
• 20m x Sustainable 6mm² Red Double Insulated Halogen Free Solar Cable.
• 1 x Optional Roof Mounting System.

PV Performance Estimation
A. Installation Data – New MCS Calculation

• Installed capacity of PV system – kWP (stc): 15.750 KWp.
• Orientation of the PV system – degrees from South: 0°.
• Inclination of system – degrees from horizontal: 35°.

B. Calculation

• kWh/kWp (KK) from table1: 1,673 kWh/kWp.
• Shade factor (SF): 1.00.
• Estimated annual output (kWpxKKxSF): 25,643 kWh.
