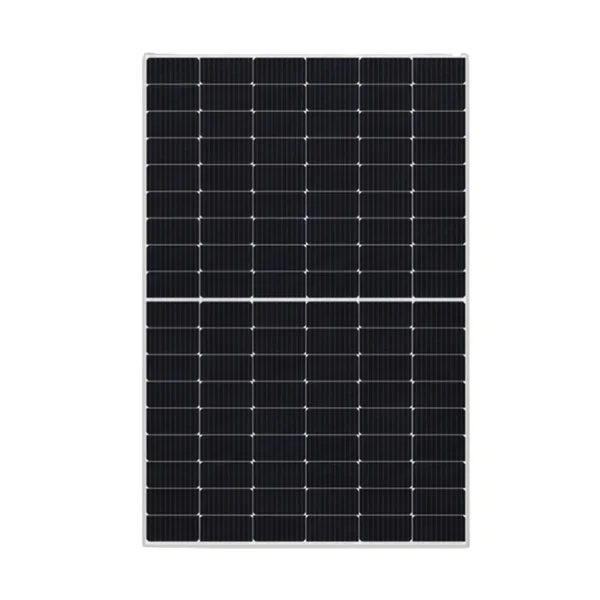

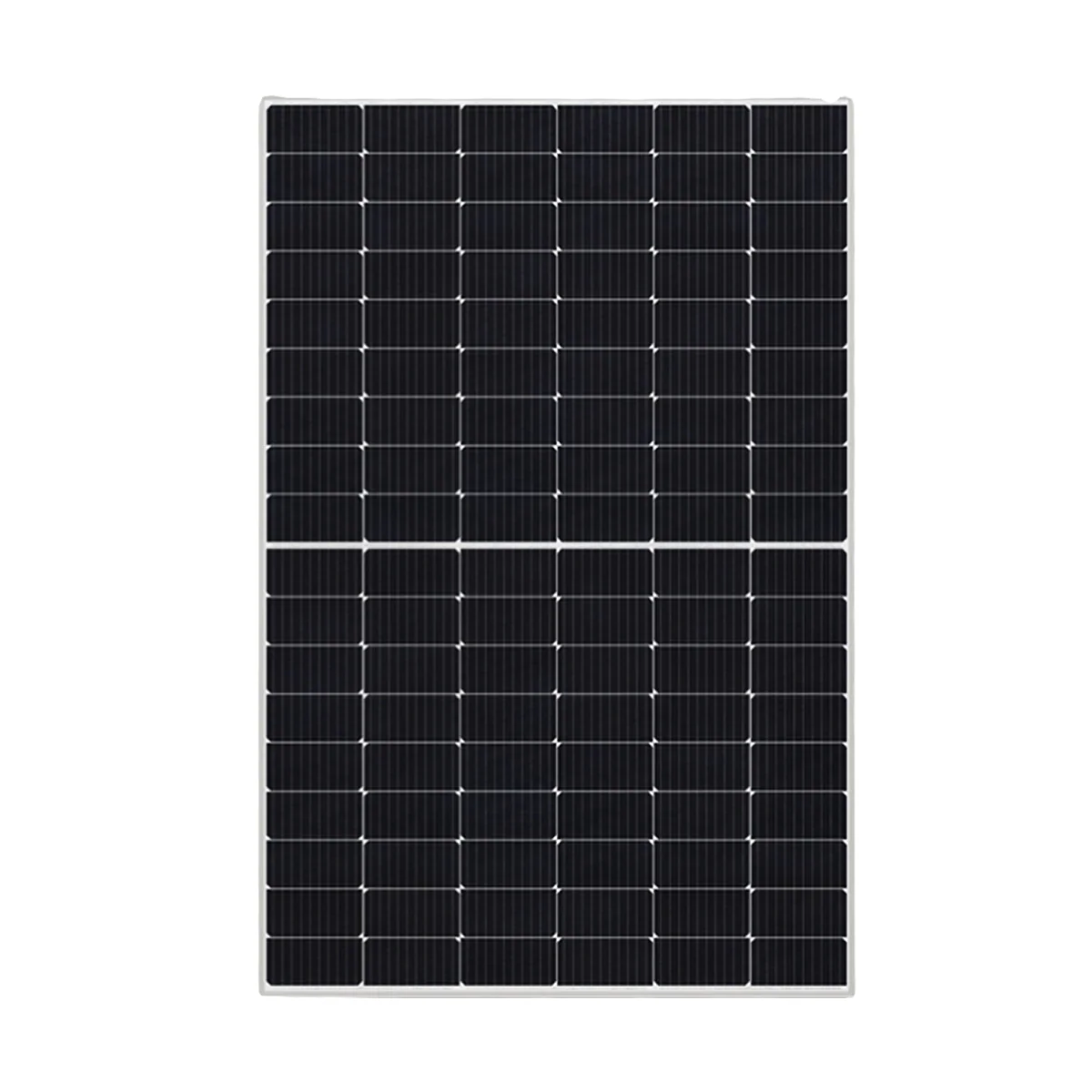

Enersol 425W Mono-Crystalline Solar Panel Pallet of 32

Description

Features

• Higher output Power
• Less Shading and Lower resistive loss
• Lower LCOE
• Better Mechanical loading tolerance
• 12 Year Warranty for materials and processing
• 25 Year Warranty for Linear Power Output

Comprehensive Certifications

• • IEC 61215, IEC 61730 i.V.
• • IEC TS 62941: Terrestrial photovoltaic (PV) modules Guidelines for increased
• confidence in PV module design qualification and type approval

DEKRA Certifications on the basis of:

• IC 61215-1:2016, EN 61215-1:2016, IEC 61215-1-1:2016,
• EN 61215-1-1:2016,I C61215-2:2016,EN 61215-2:2017, IEC61730-1:2016,
• EN IC 61730-1:2018, EN IEC 61730-1:2018/AC:2018, IEC 61730-2:2016,
• EN IEC 61730-2:2018 and EN IEC 61730-2:2018/AC:2018

Certificate Number : 31- 22717

• Max Module: 22,19%
• Power Tolerance: 0~+5W
• First Year Power Degradation: <2%
• Year 2-25 Power Degradtion: 0.55%
• Half Cell Lower operating Temperature

Mechanical Parameters

• Cell Orientation: 144 (6*12*2)
• Junction Box: Plastics IP68, 3 bypass-diodes
• Output Cable: 1100mm, 4mm²
• Glass: 3,2mm solar glass
• Frame: Anodized aluminium
• Weight: 720kg
• Dimensions (mm): 1748*1134*35

Electrical Characteristics

• Test Condition: STC
• Maximum Power: 425
• Open Circuit Voltage (V): 38,20
• Short Circuit Current (A): 13,89
• Voltage at Maximum Power(V): 32,10
• Current at Maximum Power (A): 13.24
• Module Efficiency: 21.44

Operating Parameters:

• Operational Temp: minus 40°C to 85°C
• Power Output Tolerance: 0-+5Wp
• Maximum System Voltage: 1500V DC
• Maximum Series Fuse Rating: 15A
• Nominal Operating Cell Temperature: 40 -48°C

Temperature Ratings STC

• Temperature Coefficient of is: (+)0,04%/K
• Temperature Coefficient of Voc: (-)0,30%/K
•  Temperature Coefficient of Pmax: (-)0,40%/K
