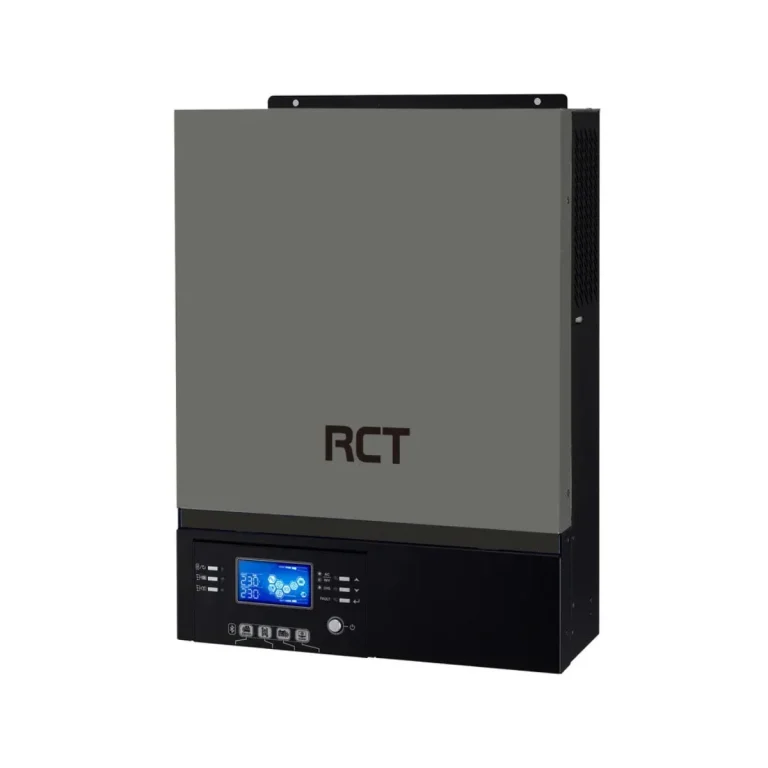

Buy RCT Axpert VM3 3K24 3kVA 3kW 24V Hybrid Inverter

R11,500.00

Features and Functions

  • Detachable LCD control module with multiple communications.
  • Built-in Bluetooth for mobile monitoring (Android App is available).
  • Supports USB On-the-Go function.
  • Reserved communication port for BMS.
  • (RS485, CAN-BUS or RS232).
  • Replaceable fan design for ease of maintenance.
  • Supply load from Grid or PV, even if battery is not available.
  • Configurable AC/PV output usage timer and prioritization.
  • Selectable high power charging current.
  • Selectable input voltage range for home appliances and personal computers.
  • Compatible to Utility Mains or generator input.
  • Auto restart while AC is recovering.
  • Cold start function.
  • 24 Month Warranty.

Technical Specifications

  • Model: RCT-AXVM3-3K24V.
  • Rated Power: 3000VA/3000W.
  • Parallel Capability: No.

Input

  • Voltage: 230 VAC.
  • Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
  • Frequency Range: 50 Hz/60 Hz (Auto sensing).

Output

  • AC Voltage Regulation: 230 Vac ± 5%.
  • Surge Power: 6000VA for 5 sec.
  • Efficiency (Peak): 93 % at Line Mode, 90% at Battery Mode.
  • Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).
  • Waveform: Pure sine wave.

Battery

  • Battery Voltage: 24 Vdc.
  • Floating Charge Voltage: 27 Vdc.
  • Overcharge Protection: 34 Vdc.

Solar Charger & AC Charger

  • Solar Charger Type: MPPT.
  • Maximum PV Array Open Circuit Voltage: 400 Vdc.
  • Maximum PV Array Power: 4000 W.
  • MPP Range @ Operating Voltage: 120 ~ 380 Vdc.
  • Maximum Solar Charge Current: 60 A.
  • Maximum AC Charge Current: 40 A.
  • Maximum Charge Current: 60 A.

Physical

  • Dimension, D x W x H (mm): 115 x 300 x 400.
  • Net Weight (kgs): 10.
  • Communication Interface: USB/RS232/RS485/Bluetooth/Dry contact.

Included in box

  • Inverter x 1
  • User manual x 1
  • RS232 Communication cable x 1
  • Software CD x 1
  • DC Fuse x 1

Description

Buy RCT Axpert VM3 3K24 3kVA 3kW 24V Hybrid Inverter

If you’re looking to invest in a reliable, energy-efficient, and affordable solar power solution, look no further than the Buy RCT Axpert VM3 3K24 3kVA 3kW 24V Hybrid Inverter. This advanced off-grid hybrid inverter is ideal for South African households and businesses looking to beat load shedding and reduce energy bills. With its intelligent features, compatibility with lithium batteries, and pure sine wave output, this inverter offers an exceptional balance of power and affordability.

Whether you need backup energy during power cuts or want to run your entire household on solar, this compact yet powerful inverter is a dependable choice. At Solaray Energy, we are proud to bring you high-performance energy solutions tailored to local conditions in South Africa, as well as neighbouring countries such as Namibia, Botswana, Zambia, and Lesotho.


📊 Main Long-Tail Keyword:

Buy RCT Axpert VM3 3K24 3kVA 3kW 24V Hybrid Inverter


🔧 Product Specifications

Feature Specification
Model RCT Axpert VM3 3K24
Power Output 3kVA / 3kW
Battery Voltage 24V DC
Inverter Type Off-grid Hybrid
Waveform Pure Sine Wave
Max PV Input Power 1500W
Max PV Voltage 145VDC
MPPT Range 60–115VDC
MPPT Charge Controller 60A
AC Charger Current 20A
Parallel Capability No
Battery Compatibility Lithium, AGM, Gel, Lead-acid
Display Smart LCD with settings menu
Communication Ports USB / RS232 / Dry contact
Dimensions 100 x 300 x 440mm approx.
Weight ~10kg

🌞 Key Benefits of the RCT Axpert VM3 3K24

1. ✅ All-in-One Solar Solution

Includes a 60A MPPT solar charge controller and a 20A grid charger. Perfect for households and small businesses.

2. ⚡ Reliable Power Backup

Provides seamless transition between grid, solar, and battery power. Keeps critical devices running during outages.

3. 💖 Lithium Battery Ready

Full compatibility with lithium battery brands like Pylontech, Greenrich, and HinaEss.

🔗 Explore Our Lithium Batteries

4. 📊 User-Friendly Interface

Smart LCD screen with intuitive navigation and programmable settings makes system management simple.

5. 🚀 Fast and Simple Installation

Compact design allows for easy wall-mounting in homes, lodges, small shops, or farm cottages.


🏡 Ideal Applications

  • 🏠 Small homes and apartments
  • 🏛️ Remote rural setups
  • 🚑 Clinics or home-based medical setups
  • 💼 Small businesses, salons, and retail stores
  • ⛺ Guest lodges or off-grid cottages

🤝 What Can It Power?

With the right battery setup, the RCT Axpert VM3 3K24 can power:

  • LED lights, fans, routers
  • Televisions and entertainment systems
  • Laptops, tablets, smartphones
  • Refrigerators and chest freezers
  • CPAP machines, CCTV systems, alarm systems

Estimated backup time depends on battery size and load configuration.


🌿 Pair With Solar Panels & Batteries

This inverter is fully solar-ready. For optimal performance:

  • Pair with 2–4 solar panels (24V system)
  • Use with 24V lithium or gel batteries

🔗 Browse Solar Panels

🔗 Buy Inverter Accessories


🚚 Shipping and Delivery

We ship across South Africa and to neighbouring countries:

  • 🇿🇦 Zambia
  • 🇳🇦 Namibia
  • 🇷🇼 Botswana
  • 🇱🇨 Lesotho

🔗 View Our Shipping & Returns Policy


❓ Frequently Asked Questions

Q1: Does this inverter work during load shedding?

Yes. It instantly switches to battery or solar power during load shedding to keep your appliances running.

Q2: Does it support lithium batteries?

Yes. It is compatible with most 24V lithium battery brands, including those with BMS.

Q3: Is this inverter Wi-Fi enabled?

No. However, USB and RS232 ports allow for monitoring via PC software.

Q4: Can I install this myself?

While technically possible, we strongly recommend installation by a certified solar technician.

Q5: Is it safe for sensitive electronics?

Yes. Its pure sine wave output is safe for TVs, PCs, and other sensitive equipment.
